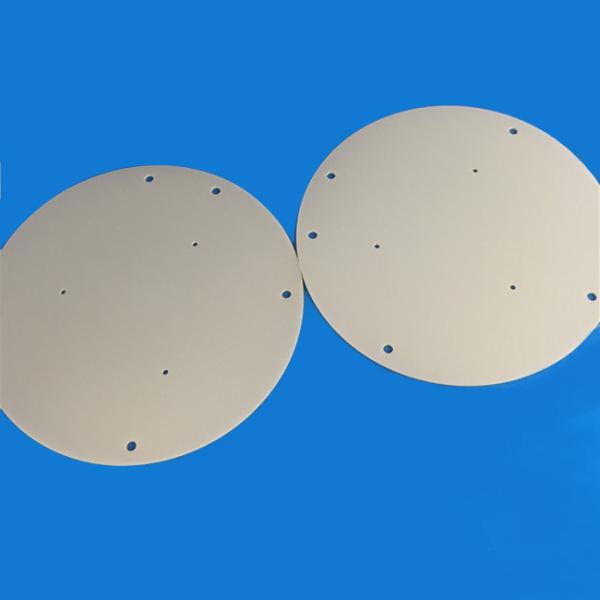

Thin Flim High Thermal Conductivity Aluminum Nitride AlN Ceramic
Wafer
The specification of the AlN Ceramic wafer
1. We are supplying with many round ceramic wafers, square &
rectangular ceramic substrates
2. The typical thickness of AlN wafers covers 0.38mm, 0.5mm,
0.635mm, 1.0mm, 1.2mm, 1.5mm
3. The biggest diameter of the round ceramic wafer can be up to
400mm in 3mm, 4mm, 5mm thick
4. The max. side-length of the square and rectangular ceramic wafer
can be 400mm by 500mm
5. Surface treatment: it can be one-side, or double side polished,
metalizing or sandblasting
The main features of the AlN ceramic wafer
1. High thermal conductivity (170 ~220) W/m.k, it's 5~8.5 times
higher than that of alumina
2. Similar coefficient of thermal expansion to that of silicon
(Si), it helps to achieve high reliability of Si chip
3. High insulation resistance and voltage resistance strength, but
low dielectric constant and dielectric loss
4. High mechanical strength, it's up to 450MPa and very dense
ceramic body free of porosity
5. It offers very high purity up to 99%, also it's free of toxicity
and meets RoHS, REACH regulation
The description of the AlN ceramic wafer
Our facility has been manufacturing aluminum nitride (AlN) wafers
for ages, including a selection of thickness from 0.30mm to 10mm.
With both extremely high thermal conductivity (170-220W/mK) and
insulating properties. These ceramic wafers can be the best
solution in electronics applications where strict conditions are
required, such as power modules (MOSFET, IGBT), LED packages for
protecting circuits, cooling, packages, and modules.
Property Datasheet of AlN Ceramic Wafers and Ceramic Substrates
| General | Properties | Unit | Value |
| Mechanical | Purity | % | ≥99 |
| Volume Density | g/cm3 | ≥3.30 |
| Color | | Gray |
| Porosity | % | 0 |
| Compressive Strength | MPa | - |
| Bending Strength | MPa | 450 |
| Elastic Modulus | MPa | 330 |
| Fracture toughness | Mpam1/2 | 3 |
| Thermal | Max. service temperature (Non-loading) | ℃ | 1800 |
| Thermal Conductivity (25℃) | W/m.k | ≥170 |
| Coefficient of Thermal Expansion (CTE) | 1*10-6 m/k | 4.6 |
| Specific heat | 1 x 103J/(kg·K) | 0.74 |
| Electrical | Volume Resistivity (25℃) | ohm.cm | 1*1014 |
| Insulation Breakdown | KV/mm | 25 |
| Dielectric constant (1Mhz) | (E) | 8.7 |
Why choose us?
1.With 15 years of manufacturing experience in OEM, ODM
2. Powerful R&D, customized and mass production capability
3. In-house comprehensive manufacturing types of equipment
4. Rigorous quality control system and processes
FAQs (Frequently Asked Questions)
Q1: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q2. Are you a factory or trading company?
A: We are a direct manufacturer of technical ceramic components.
You are welcome to visit our factory.
Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q4: How to ensure quality?
A: We have a complete strict quality-control system, including IQC,
IPQC, QA, OQC per ISO9001: 2008
Q5: What other products are you dealing with?
A: We also focus on a variety of metalized ceramics, high precision
zirconia ceramic parts, ceramic seals.
