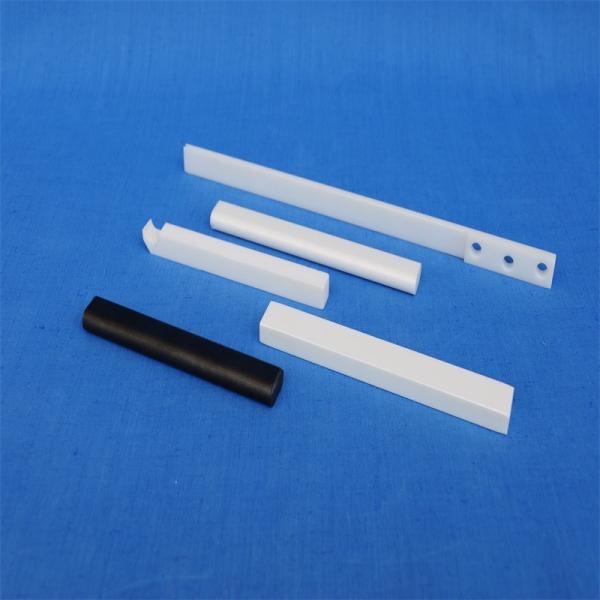

Industrial Wear Resistant Precision Zirconia Ceramic Bar Rod for
Medicals
The specification of ceramic bars
1. Material availability Zirconia, alumina, silicon carbide,
silicon carbide
2. Shaping method: ISO pressing, Dry pressed, Ceramic injection molding
3. Specification: available side-length from 1mm to 50mm, the
thickness to be 30mm
4. Tolerance: side-length greater than 0.01mm after grinding,
overall length to be 0.10mm
5. Surface finish: the working surface to be diamond polished up to
Ra0.1, or better
Main features of the zirconia ceramic rod and bar
1. Can withstand higher temperatures up to 2400°
2. High hardness, over than 1300 MPa for Vicker
3. Exceptional fracture toughness reaches up to 8 Mpa m1/2
4. Low thermal conductivity, less than 3 W/m.k at room temperature
5. Higher density than most of technical ceramics, over than 6 g/cm3
6. Chemical inertness, not interact with almost all strong acid and
alkali
7. Resistance to molten metals due to an extraordinary melting
point
8. Good Wear resistance, over 276 times than stainless steel
Description of zirconia ceramic bar:
Our facility manufactures a wide range of zirconia ceramic rod
shafts by cold ISO pressing, dry pressing or ceramic injection
molding. All these zirconia ceramic rods are with a dense ceramic
body. In order to reduce the friction further, the cylindrical
surface will be polished to be a mirror effect.
We have been dealing with various standard and customized zirconia
ceramic rods, including the dimensions, different grades of
zirconia, different shapes, different surface treatments and so on.
Application of zirconia ceramic rods and bars:
Zirconia ceramic rods and bars are widely used in the fields of
industry, chemical industry, biology, semiconductor, precision
machinery, and high technology because of their excellent
mechanical, electrical, thermal, mechanical, and biochemical
properties.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |
Manufacturing flow chart of ceramic rods
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting, and so on, it helps us to
control the quality very well, also it greatly benefits cost
control.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
