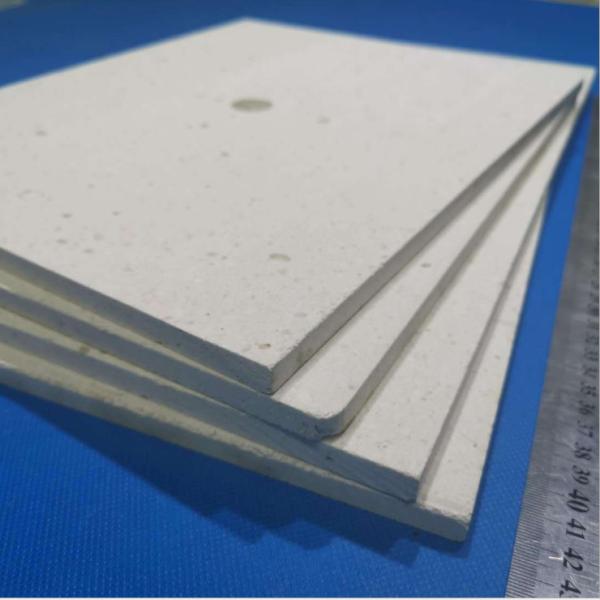

High-Temperature Refractory Corundum Mullite Ceramic Setter Plate
Description of corundum mullite ceramic setter plate
Mullite mainly includes two types which are the ordinary and
high-purity mullite ceramic. The ordinary has the lower purity raw
material, its components include A2O3, SiO2, TiO2, Fe2O3, CaO, MgO,
Na2O, K2O, and other impurities, so it can be generally applied as
refractories for less demanding on high-temperature strength
occasions.
In terms of high-purity mullite sintered by the high purity SiO2
Al2O3 powders, It has the advantage with excellent refractory,
uniform expansion, excellent thermal shock resistance, high load
softening point, small high-temperature creep, high hardness, the
chemical resistance. Especially the high-performance high-purity
mullite ceramics, at 1300 ℃ when bending strength of 570MPa,
fracture toughness KIC of 5.7MPa, 1.6 times higher than normal,
such as the temperature increases, the strength and toughness only
do not decay but greatly improved, high purity mullite ceramics as
a high-temperature material excellent material properties.
Main characteristics of the ceramic setter plates
1. High melting point, up to 1850℃
2. High service temperature, up to 1800℃
3. Low thermal expansion coefficient: 5.3×10-6
4. Good flatness with uniform shrinkage at the firing process
3. Chemical stability, even in a harsh environment.
4. Minimal warpage, bending, and undulation.
7. Excellent resistance against oil and chemical.
8. Stable breaking strength, and less variance in shape or
dimensions.
Specification of ceramic setter plates
● Materials: corundum mullite, cordierite, high purity alumina,
silicon carbide
● Dimensions: Side length max. 800mm x 500mm, Thickness can be
0.2mm to 30mm
● Surface treatment: fine ground, well-polished, lapping
● The checklist of standard size with the stock in corundum mullite
as below
| S/N | Length(mm) | Width(mm) | Thickness(mm) |
| 1 | 150 | 150 | Range from 2mm to 30mm |
| 2 | 150 | 300 |
| 3 | 150 | 320 |
| 4 | 240 | 120 |
| 5 | 250 | 250 |
| 6 | 295 | 295 |
| 7 | 300 | 300 |
| 8 | 310 | 310 |
| 9 | 320 | 320 |
| 10 | 330 | 330 |
| 11 | 340 | 340 |
| 12 | 650 | 500 |
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs (Frequently Asked Questions)
Q1: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q2. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides ceramic setter plates.
