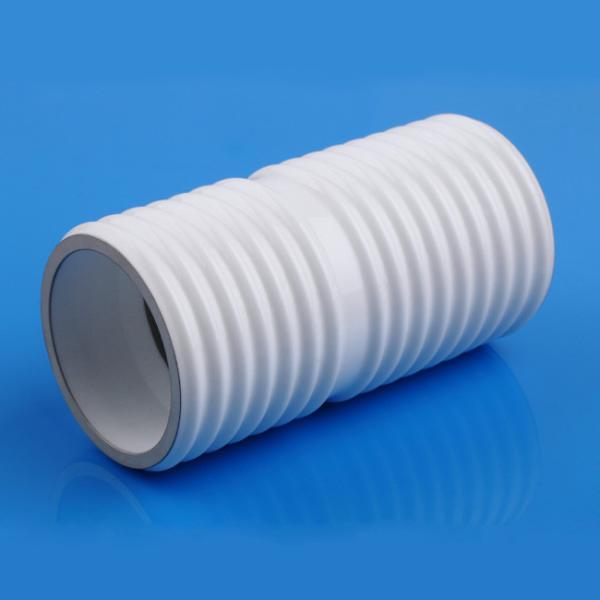

Industrial High Insulation Aluminum oxide Vacuum Interrupter Tube
Prime characteristics of metallized vacuum interrupter tube:
1. Exceptional bonding/brazing strength up to 150MPa/mm2
2. Superb low leak rate below to ≤1×10-11 Pa•m3 / s
3. High mechanical strength up to 320MPa at least
4. Electrical insulation strength up to 18KV. DC at least
5. Extremely anti-corrosion and free of rust forever
6. Can work under high temperature up to 1450℃
Description of aluminum oxide vacuum interrupter tube :
We have been producing metallized ceramic vacuum interrupter tube
for ages. With our comprehensive in-house manufacturing types of
equipment, we support a variety of prototyping needs, also we are
capable of dealing with mass production.
All these vacuum interrupters tubes have excellent insulation
resistance, high bonding strength, extreme low leak rate in their
applications.
Specification of vacuum interrupter ceramic tube:
Material
96% alumina
99% alumina
99.5% alumina
Zirconium oxide
Beryllia oxide
Shaping methods
Hot pressing
Dry pressing
ISO pressing
Dimensions
OD up to φ300mm
Length up to 500pcs
Nominal tolerance
OD: ±0.10mm
ID: ±0.20mm
L: ±1mm
Surface treatment
External surface glazed
Internal surface polished
Metallization types of alumina vacuum interrupter ceramic tubes
● Ceramic body + Silver (Ag) plating
● Ceramic body + Molybdenum-Manganese ( Mo-Mn) metallization
● Ceramic body + Molybdenum-Manganese ( Mo-Mn) metallization +
Nickle ( Ni ) plating
Applications: High current/voltage feed-through insulators, Headers, High-power
receptacles, Insulating discs, Insulator rings and cylinders,
Precipitator products, Power switches, Traveling wave tubes,
Windows, Power grid tubes, X-ray tubes
Technical Datasheet of Regular Materials
General
Property
Units
99%Al2O3
95%Al2O3
ZrO2
Mechanical
Density
g/cm3
≥3.80
≥3.60
≥6.0
Water absorption
%
0
0
0
Hardness
HV
1700
1500
1300
Flexural strength
Mpa
≥338
≥320
≥1200
Compressive strength
Mpa
≥2240
≥2000
≥1990
Fracture toughness
Mpa m 1/2
4-5
3-4
6.5-8
Thermal
Max. service temperature (Non-loading)
℃
1600
1450
1000
CTE (20-800℃)
1×10 -6 /℃
6.2~8.0
5.0~8.0
8.0~9.5
Thermal shock
T(℃)
≥200
≥220
≥300
Thermal conductivity (25℃ )
W/m.k
29
24
3
Specific heat
1 x 10 3 J/(kg·K)
0.78
0.78
0.46
Electrical
Volume resistivity (25℃ )
ohm.cm
＞1 x 10 14
＞1 x 10 14
＞1 x 10 11
Insulation strength
KV/mm
18
18
17
Dielectric constant (1Mhz)
(E)
9.5
9.5
29
Other related metallized ceramic tubes
We could produce lots of different types of metallized ceramic
cylinders for electron tubes, vacuum interrupters, vacuum breakers.
Packaging proposal & Transportation methods
1. Vacuum packing with desiccant as an inner package;
2. Then, exported carton as an outer package.
3. Finally, it will be packed with a wooden case if needed.
4. We regularly use DHL, UPS, FedEx, and TNT to ship small parcels.
5. For large volume orders, we could ship it by sea as per
customers' needs.
