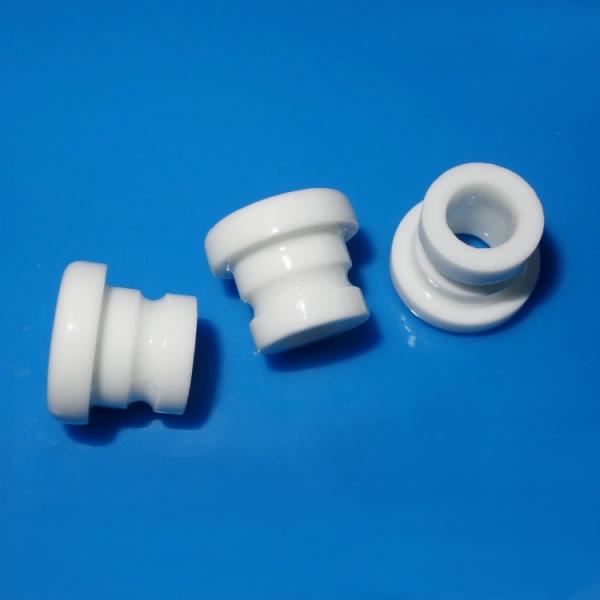

Industrial Textile 95% 99% Aluminum Oxide Grooved Ceramic Eyelet
Guide
Features of alumina ceramic eyelet guide:
1. Exceptional hardness, bending strength, toughness
2. Good insulation, anti-magnetic, free static electricity
3. Corrosion resistance in harsh working conditions
4. Excellent thermal shock resistance and good thermal stability
5. Nox-toxic, healthy material, eco-friendly material
6. Meet with RoHS, REACH regulation completely
Specification of alumina ceramic eyelet guide:
1. Raw material: 95% alumina, 99% alumina, zirconium oxide, titania
2. Dimensions: min. diameter can be 2mm, max. diameter can be 50mm
3. Shape: Single flanged, double flanged, slotted, grooved, tubed
and so on
4. Tolerance: general tolerance ± 1% of the dimensions, or better
via a precision process
5. Surface finish: mirror surface, to be Ra0.3 ~ 0.4 for 95%
alumina ceramic eye, to be Ra 0.2 ~0.3 for 99% alumina ceramic eye
Description of alumina ceramic eyelet guide
Alumina ceramic eyes are extremely versatile parts in wire, thread,
cable, fiber passaging applications because the material is very
hard, wear-resistant, and chemical resistant, and the working
surface can be polished to a smooth finish. Our facility provides
ceramic eyes in a wide range of standard sizes and configurations
to meet your needs. We also offer custom ceramic eyelets, ceramic
eyes designed and manufactured to match your exact requirements,
including different materials, special shapes.
Technical datasheet of typical materials for ceramic eyelets
| Property | Units | 95% alumina | 99% alumina | 99.5% alumina | Zirconia | Titania |
| Color | | White, pink | White, pink, ivory | Pink, ivory, white | White, Yellow | Black, Gray, Yellow |
| Density | g/cm3 | ≥3.60 | ≥3.80 | ≥3.85 | ≥6.0 | ≥4.0 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1500 | 1700 | 1700 | 1300 | 800 |
| Flexural strength | Mpa | ≥320 | ≥338 | ≥379 | ≥1200 | ≥158 |
| Compressive strength | Mpa | ≥2000 | ≥2240 | ≥2240 | ≥1990 | |
| Fracture toughness | Mpa m1/2 | 3-4 | 4-5 | 4-5 | 6.5-8 | 3.2 |
| Thermal Expansion Coefficient(20-800℃) | 1×10 -6 /℃ | 5.0~8.0 | 6.2~8.0 | 6.5~8.0 | 8.0~9.5 | 8.8 |
| Thermal conductivity | W/m.k (25℃) | ≥220 | ≥200 | ≥250 | ≥300 | ≥330 |
| Max. service temperature | ℃ | 1500 | 1600 | 1675 | 1000 | 1000 |
| Insulation strength | KV/mm | 18 | 18 | 19 | 17 | 3.93 |
| Dielectric constant (1Mhz) | (E) | 9.5 | 9.5 | 9.7 | 29 | 85 |
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
