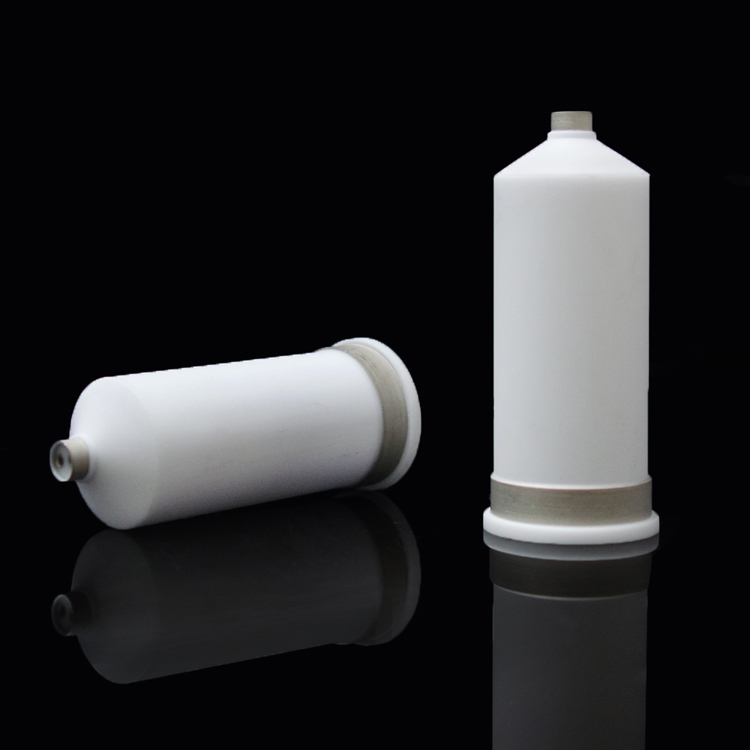

Various Size High Insulation GDT Alumina Metallised Ceramic Tube
Specification of metallised ceramic tube:
1. Raw material: 95~99.5% alumina(Al2O3), zirconia(ZrO2), Beryllia
(BeO) optional
2. Dimension capability: min. the inner diameter can be 1mm, max.
the outer diameter can be 800mm
3. Types of metallized ceramic tube: both end open, one end closed,
multiple holes
4. Precision process: CNC machining, fine grinding, drilling, laser
cutting and so on
5. Surface treatment: external and internal polishing, glazing and
so on
6. Surface quality: free of cracks, bubbles without any foreign
contamination on the internal and external surface
6. Metallization types: Molybdenum (Mo-Mn) only, Silver (Ag) only,
Molybdenum + Nickle (Ni) plating, Tungsten + Gold (Au) plating
7. The thickness of metallization : Mo/Mn with 15~40 micros, Ni
plating with 2~6 micros, Ag plating: 20~70um, Au plating: 0.2~1um
Prime features of metallised ceramic tube:
● High bonding/brazing strength over 150Mpa at mm2 ● Min. electric resistance and vacuum tightness less than1×10-11 Pa•m3 / s
● High mechanical strength, insulation strength ● Anti-chemical,
anti-aging without corrosion in comparison with metals
● Super wear resistance with long service life
Description of metallised ceramic tube:
Many technologies have been used to join ceramics to metals, or
ceramics to ceramics. Brazing is a desirable method for joining process because of its capability for
joining dissimilar materials, high reliability and precision production tolerance.
To join ceramics to itself or to metal, the critical problem is the
poor wettability of ceramics by filler alloys. When a metal layer
applied on a certain surface of ceramic parts, it will help to fix
the poor wettability well. That's why metalized ceramics play a
very important role between ceramics to ceramics, ceramics to
metals joining technology.
We have been making a variety of ceramic metallization parts with
different materials, different designs, different specifications.
Many amazing solutions were to be supplied to our customers to
reach their toughest technical challenges.
Typical application of metalized ceramic components
Metallized ceramic insulators are widely used in electronics,
high-vacuum technology, sensors, and medical fields, like vacuum
interrupters, electron tubes, feedthroughs, medical linear
accelerators/ power tubes, photomultipliers, X-ray tubes, and
pressure sensors.
Packaging proposal and transportation
1. Vacuum packaging with drier as the inner package; 2. An exported
carton as the outer package; 3. The wooden case will be used if
needed.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★Abide all orders as
the first priority
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
