    Customized Technical Ceramic Parts Long Service Life Non Toxic Material Eco Friendly

    Ask Lasest Price
    Brand Name : Jinghui Ceramics
    Model Number : JH.CWG-001
    Certification : RoHS, REACH, ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal, MoneyGram, L/C
    Supply Ability : 5000000 pcs per month
    Delivery Time : 3~4 weeks
    • Product Details
    • Company Profile

    Customized Technical Ceramic Parts Long Service Life Non Toxic Material Eco Friendly

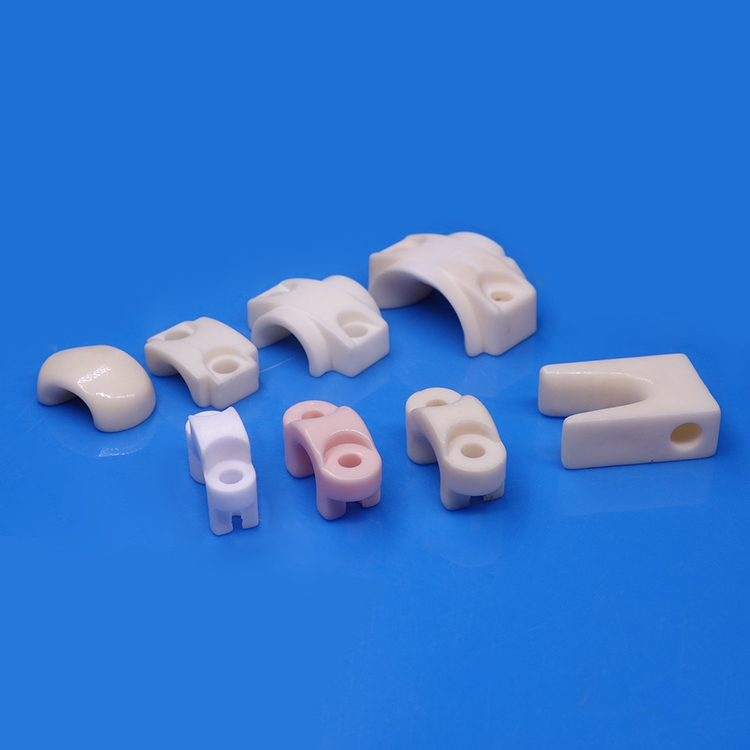

    Customized Superb Wear Resistance Technical Ceramic Buncher Bow for Textile


    Main features of ceramic buncher bows:

    1. Lowest possible yarn breakage rate with low yarn tensions

    2. Highest yarn cleanliness without any fault silk occasion

    3. Long service life on both special yarns and raw materials with aggressive additives

    4. Exceptional wear resistance and hardness better than metal ones

    5. Excellent mechanical strength, fracture toughness and bending strength

    6. Good insulation, free of static electricity, resistant magnetic

    7. Superb thermal conductivity coefficient and thermal shock property

    8. Corrosion resistance in harsh working conditions

    9. Excellent thermal shock resistance and good thermal stability

    10. Nox-toxic, healthy material, eco-friendly material

    11. Meet with RoHS, REACH regulation completely

    Specification of ceramic buncher bows:

    1. Dimensions: max. size can be 100mm

    2. Optional raw materials: zirconia(ZrO2),high purity alumina(Al2o3),titania(TiO2)

    3. Another type of products: traverse guides, pigtails, eyelets, jet plates, dog tails, air nozzles and so on

    4. Tolerance: general tolerance ± 1% of the dimensions, or better via a precision process

    5. Surface finish: mirror surface, better than Ra0.1 at working contact surface

    Description of ceramic buncher bows:

    Ceramic buncher bows are made of high aluminum oxides, or zirconium oxide ceramics. Both technical ceramics have superb high hardness, wear-resistance, and low friction coefficient because of their special microstructure after high-temperature sintering.

    In order to cater to different cost needs, the polishing grade is to be classified to coarse polishing ( better than Ra0.8), fine polishing (better than Ra0.4) and diamond polishing (Better than Ra0.2). In the meantime, there are both sides diamond polishing and single side diamond polishing.

    We offer a number of ceramic yarn guides for thread guides, yarn forming, and yarn modification via different shaping methods in different technical raw materials as per customers' needs.

    All these ceramic yarn guides are designed for use in processes at low yarn tensions with no damage. It helps decrease and maintain times and improve production efficiency greatly.


    Technical datasheet of typical materials for ceramic eyes


    PropertyUnits95% alumina99% alumina99.5% aluminaZirconiaTitania
    ColorWhite, pinkWhite, pink, ivoryPink, ivory, whiteWhite, YellowBlack, Gray, Yellow
    Densityg/cm3≥3.60≥3.80≥3.85≥6.0≥4.0
    Water absorption%00000
    HardnessHV1500170017001300800
    Flexural strengthMpa≥320≥338≥379≥1200≥158
    Compressive strengthMpa≥2000≥2240≥2240≥1990
    Fracture toughnessMpa m1/23-44-54-56.5-83.2
    Thermal Expansion Coefficient(20-800℃)1×10 -6 /℃5.0~8.06.2~8.06.5~8.08.0~9.58.8
    Thermal conductivityW/m.k (25℃)≥220≥200≥250≥300≥330
    Max. service temperature15001600167510001000
    Insulation strengthKV/mm181819173.93
    Dielectric constant (1Mhz)(E)9.59.59.72985


    Why choose us?


    ★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
    ★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
    ★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority


    FAQ

    Q1. Are you a factory or trading company?
    A: We are a manufacturer. You are welcome to visit our factory.
    Q2: Do you send a sample to check?
    A: Sure, the sample is free and freight collect.
    Q3: When will you ship it?
    A: If the products are in storage, we'll ship within 48 hours
    Q4: When can I get the price?
    A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
    Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
    Q5: Is it available to provide customized products?
    A: We always support custom-made demand as per different materials, dimensions, and designs.
    Q6: How to ensure quality?
    A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
    Q7: What other products are you dealing with?
    A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
