CNC Machining High Precision Y2O3 Stabilized Zirconia ZrO2 Ceramic
Washer
Specification of the ceramic washer:
1. Material options: Y-PSZ, Mg-PSZ, Ca-PSZ, 99~99.7%
alumina(Al2O3), Silicon carbide (SiC)
2. Forming method: Dry pressed, Ceramic injection molding, ISO
pressed and Hot pressed
3. Type of ceramic parts: ceramic tube, ceramic ring, ceramic rod,
ceramic housing, ceramic cap
4. Specification: Available outer from 1mm to 50mm, available
length from 10mm to 500mm
5. Tolerance: dimensions less than 100mm with 0.005mm, greater than
100mm with 0.01mm
Prime features of zirconia ceramic :
1. Resistance to molten metals due to an extraordinary melting
point
2. Can withstand higher temperatures up to 2400°
3. Higher density than most of technical ceramics, over than 6 g/cm3
4. High hardness, over than 1300 MPa for Vicker
5. Low thermal conductivity, less than 3 W/m.k at room temperature
6. Similar coefficient of thermal expansion as stainless steel
7. Excellent wear resistance, over 276 times than stainless steel
8. Exceptional fracture toughness reaches up to 8 Mpa m1/2
9. Chemical inertness, aging resistance and not rust forever
Description of zirconia ceramic washer:
Our facility provides a selection of different partial stabilized
zirconia, including yttria partially stabilized, MgO partially
stabilized, CaO partially stabilized. All these zirconium oxide
ceramic materials offer low thermal conductivity, superb wear
resistance, excellent fracture toughness, outstanding low friction
coefficient, exceptional resistant strong acid & alkali, and great
high-temperature resistance, strong hardness, electrical
insulation, these make zirconia ceramic as a very important
technical raw material of structural parts used in various
machinery, electrical, electronic, engineering fields.
With high fracture toughness to resistant crack, it's an ideal
machinable advanced ceramics. Our facility is capable of machining
a variety of complicated ceramic parts with a very high accuracy
dimension through fine grinding, lapping, CNC machining, laser
cutting and so on.
These zirconia structural ceramics are widely used to wear ceramic
fixtures, the ceramic plunger in fluid metering, ceramic valve seat
in the pump, ceramic shaft/bearing, ceramic wire guides in the
textile machinery industry.

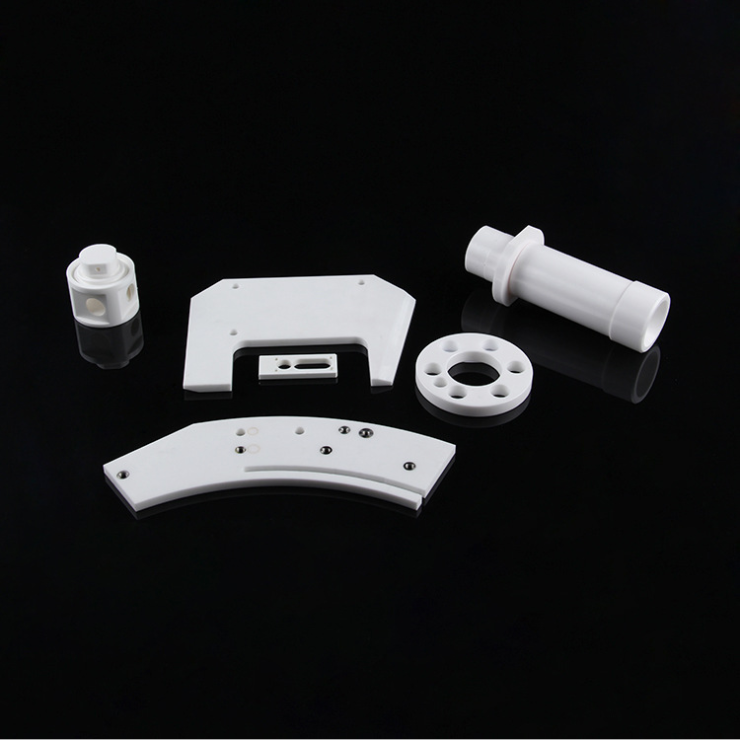

Gallery of zirconia ceramic components
We produce various zirconia ceramic components in different
materials with a special design.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |
Manufacturing flow chart of technical ceramic parts
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting and so on, it helps us to control
the quality very well, also it greatly benefits cost control.
Packaging proposal and transportation solutions
1. We will keep the ceramic parts inside the inner package to be
fixed without moving, then it will prevent them from collision each
other,
to avoid any cause any chippings during transportation.
2. In addition, the inside of the outer carton will be filled with
sufficient protective kinds of stuff.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
