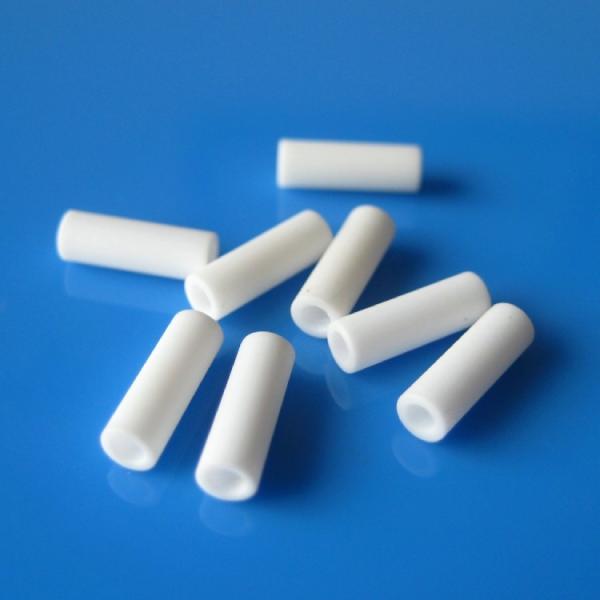

High Dielectric Strength C220 Steatite Ceramic Insulation Bushing
for Iron Thermostat
Main features of ceramic insulating rings:
1. High mechanical strength, the hardness over than 1500Mpa
2. High insulation resistance, the insulation strength up to
18KV/mm.
3. High-temperature resistance, the working temperature can up to
1500℃
4. Good thermal shock, it can withstand the thermal shock around
200 ℃
5. High chemical stability, it will not react with most of strong
acid and alkali
6. Quality surface free of any cracks, burrs, impurities, pinholes
and so on
7. Cost-effective depend on fully automatic machines and veteran
operators
8. Many selections of sizes with ready molds, provide quick and
flexible delivery
Specification of ceramic insulating rings:
1. Available material: alumina, low alkali ceramic, steatite
2. Shaping methods: Dry pressed, hot pressed via automatic mold
3. Color available: pure white, blue, pink, black optional
4. Size: out diameter and length as per physical specification or
drawing
5. Secondary process: vibrating polish, centerless grinding and so
on.
Description of ceramic insulating rings:
Our factory produces numerous ceramic components for the steam iron
bimetal type thermostat. They are made of alumina, steatite or low
alkali ceramics. All the materials we used are famous for their
high insulation resistance, dielectric strength, excellent thermal
properties, and super mechanical strength.
Besides ceramic insulating rings, we also manufacture ceramic insulating pins, ceramic insulating bushes, ceramic
insulating spacers, ceramic insulating bases, ceramic insulating
holders and so on. All of them are with a selection of
specifications with our own molds, additionally, we support
customized ceramic parts for various adjustable bimetal
thermostats. All ceramic insulating pins we supplied are free of crack, burr,
pinholes, impurities, with a dense, smooth surface.
Whatever, it's prototyping case or high volume production need, we
are able to meet you completely.
Comparison of different material thermostat ceramics
| General | Item | Unit | Material |
| 95% alumina | Steatite | Low alkali ceramic |
Physical
Properties | Density | g/cm 3 | ≥3.60 | ≥2.7 | ≥2.4 |
| Water Absorption | % | 0 | 0 | ≤ 0.50% |
| Hardness (HV) | Mpa | 1500 | 800 | 600 |
Thermal
Properties | Max. service temperature | ℃ | 1550 | 1000 | ≤1200 |
| Thermal conductivity(at 25℃) | W.(m.K) -1 | 5.0~8.0 | 7.7~8.0 | 1.26 |
Coefficient of thermal expansion
( 20~300℃) | 1×10 -6 /℃ | 24 | 2.5 | 9 |
Electrical
Properties | Volume resistivity (at 25℃) | ohm.cm | ＞1 x 10 14 | 1 x 10 13 | >10 12 |
| Dielectric strength | KV/mm | 18 | 10 | ≥13 |
| Dielectric constant( 20 °C) | (1MHz) | 9.5 | 5.8 | 6 |
Application :
These ceramic pins are widely used in a variety of KST adjustable
bimetal thermostats, steam iron thermostats. temperature control
switch.
Packaging proposal:
1. We will keep the ceramic parts inside the inner package to be
fixed without moving, then it will prevent them from collision each
other, to avoid any cause any chippings during transportation.
2. In addition, the inside of the outer carton will be filled with
sufficient protective kinds of stuff.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
