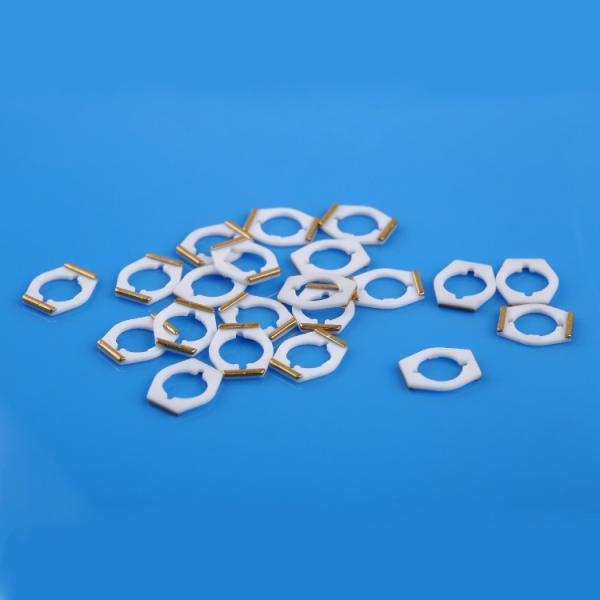

High Purity Alumina Metalized Ceramic Base with Gold Plating for
Electrical Coil
1. This metallized ceramic base is made of 95% or 99% aluminum
oxide ceramics which has superb mechanical, electrical thermal properties.
2. The metallic layer will be applied to a certain surface of
ceramic parts which cured by high temperature, then the metallic
layer will adhere the section tightly to achieve ceramic to
ceramic, ceramic to metal jointing.
3. Jointing type of metallization
● Ceramic base + Molybdenum-Manganese ( Mo - Mn) metallization, 20
~ 40um thick
● Ceramic base + Silver ( Ag) plating, 2~ 4um thick
● Ceramic base + Molybdenum-Manganese (Mo - Mn) + Nickle (Ni)
plating, Mo/Mn: 20 ~ 40um thick, Ni: 2~6um thick
● Ceramic base + Tungsten ( W) + Gold (Au) plating, W: 20~40um
thick, Au: 0.5um thick
Main features of metallized ceramic insulators:
● High bonding/brazing strength ● Min. electric resistance and
vacuum tightness
● High mechanical strength, insulation strength ● Anti-chemical,
anti-aging without corrosion
● Super wear resistance with long service life
Key performance parameters of metallized ceramics
Leak rate | ≤1×10-11 Pa•m3 / s | Metal layer tensile strength | ≥ 150Mpa |
Volume resistivity | ≥108Ω•cm | CTE | (6.5 ~ 8.0) × 10-6 /°C |
Insulation strength | ≥18kV/mm (D•C) | Dielectric constant | 9~10(1MHz, 20°C) |
Visual quality: 1. No cracks, no bubbles; 2. Evenly distributed glaze; 3. No
contamination |
The main application of metallized ceramic insulators:
Metallized ceramic insulators are widely used in electronics,
high-vacuum technology, sensors, and medical fields, like vacuum
interrupters, electron tubes, feedthroughs, medical linear
accelerators/ power tubes, photomultipliers, X-ray tubes, and
pressure sensors.
Other related metallized ceramic insulators
We are capable of producing a great many complicated structure
metallized ceramic insulators as per customer's specification,
special needs. Whatever, it's a small-size part or large-size part,
we could achieve it well.
Packaging proposal and transportation
1. Vacuum packaging with drier as the inner package;
2. An exported carton as the outer package;
3. The wooden case will be used if needed.
