Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate

    Buy cheap Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate from wholesalers

    Buy cheap Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate from wholesalers
    • Buy cheap Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate from wholesalers

    Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Customized
    Supply Ability : 2000 Piece/Pieces per Day
    Price : Negotiable
    Certification : RoHS, REACH, ISO
    • Product Details
    • Company Profile

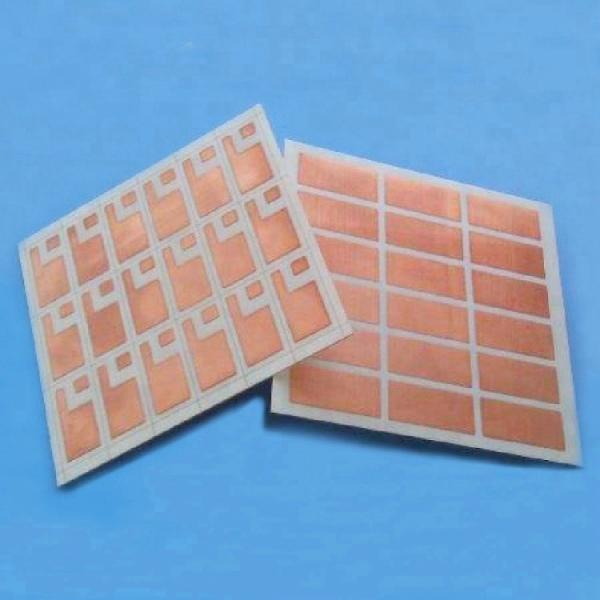

    Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate

    Direct Bond Copper Alumina Metallized Ceramic DBC Substrate For Power Electronics

    Why choose us?

    1. Support custom made metalized ceramic substrates, whatever, it's prototyping project, or cost down.

    2. With over 15 years of OEM, ODM manufacturing experience.

    3. With in-house comprehensive production equipment from forming to the secondary process.

    4. Competitive price with low-level MOQ request.

    5. Free samples availability for stocked alumina metalized ceramic substrate.

    Product Description

    Specification:

    1. Conventional thickness: 0.5mm, 0.635mm and 1mm

    2. Customized thickness, different width, and length are available.

    3. Color: White, pink optional

    4. OEM, ODM are welcomed.

    Prime features :

    1. Excellent thermal cycle properties

    2. High thermal conductivity

    3. High-density, high electrical insulation, low electricity loss,

    4. Good anti-corrosion properties

    5. Small dielectric constant

    6. High mechanical strength.

    Application:

    widely used in thick film circuits large-scale integrated circuits, hybrid IC, semiconductor packages, chip resistors, networks resistor, focusing potentiometer, power modules, power hybrid circuits and other related fields of electronic industry

    Material Data. Sheet


    ItemsUnit

    95%

    alumina

    99.2%

    alumina

    99.5%

    alumina

    ZrO2

    (Y-TZP)

    SiCTiO2Si3N4
    ColorWhiteIvoryIvoryWhiteBlackBlackGray
    Densityg/cm3≥3.60≥3.80≥3.85≥6.0≥3.21≥4.003.22
    Water absorption%0000000
    HardnessHV15001700170013002500800
    Flexural strengthMpa≥320≥338≥3791200550158650
    Compressive strengthMpa≥2000≥2240≥224019903306---2200
    Max. service temperature
    (Non-loading)
    155016001675850160010001200
    Thermal conductivityW/(m.K)2429302.5150525
    Volume
    resistivity
    Ω.cm> 10^14> 10^14> 10^14> 10^1110^510^12> 10^14
    Insulation strengthkV/mm18181917---3.9316
    Dielectric constant-9.59.59.729---958.2

    Packaging & Shipping

    Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride SubstrateDirect Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate

    Company Profile

    Direct Bond Copper DBC Ceramic Substrate , Aluminum Nitride Substrate


    FAQ

    Q1. Is it available to provide customize products?

    A: We always support custom-made metalized ceramic substrate as per different dimensions, design and metallization and plating.

    Q2. When can I get the price?

    A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price, please call us or tell us in your email so that we will proceed with your inquiry as a priority.

    Q3. How long can I expect to get the sample?
    A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 4 weeks. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

    Q4. How long does the whole procedure being worked out?
    A: After you place an order, the manufacturing time is about 25 working days.

    Q5. How to ensure quality?

    A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. A 100% cosmetic inspection will be done.

    Q6. Are you a factory or trading company?
    A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
