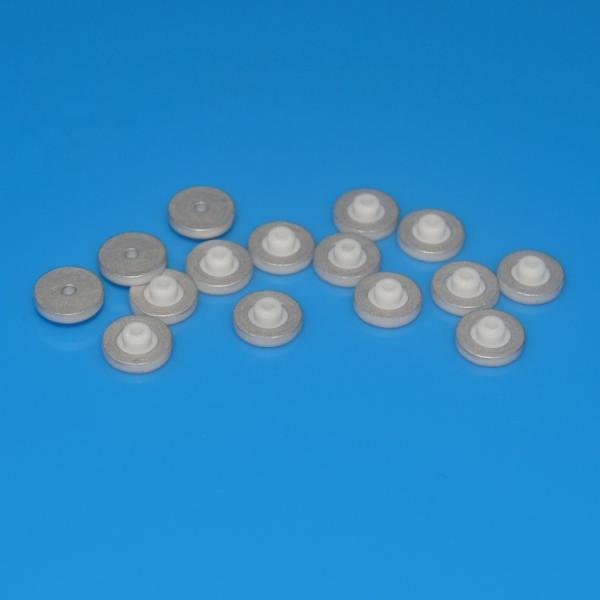

High-Performance Refractory Metallized Alumina Ceramics for
Electronics
Typical metallization types:
● Ceramic body + Silver (Ag) plating
● Ceramic body + Molybdenum-Manganese ( Mo-Mn) metallization
● Ceramic body + Molybdenum-Manganese ( Mo-Mn) metallization +
Nickle ( Ni ) plating
● Ceramic body + Tungsten ( W ) metallization + Gold ( Au ) plating
Special types are available according to customer's drawings or
samples
Main characteristics of Metallized alumina ceramics
● Min. electric resistance and vacuum tightness, and less than
1×10-11 Pa•m3 / s
● High bonding/brazing strength, It can be up to 150 MPa after
brazing
● High mechanical strength, flexural strength can be up to 338 MPa
● High insulation, anti-chemical and anti-aging. It will be free of
rust forever
Description of metallized alumina ceramics
Jointing ceramics to metals or ceramics to ceramics has been
extensively used in many electronics, electrical, high vacuum
technology, medical technology, and sensor technology. Brazing is
often the preferred method for joining process because of its
capability for joining dissimilar materials, high reliability and
precision production tolerance. To join ceramics to ceramics or to
metal, the critical issue is the poor wettability of ceramics by
filler alloys. This problem is usually solved by treating the
ceramic surface to give them metallic characteristics. Then a
metallic layer will be applied on the ceramic end surface,
cylindrical surface or a specific section of the ceramic body. The
most widely known metallization process is the molybdenum and
tungsten process.
In order to enhance the wettability of the solder at the
brazing/bonding process, a preferred metal coating is always
deposited as requested following by Mo/Mn or W layer. Also, the
coating will prevent the metallization into oxidizing.
Applications: Vacuum interrupters, Vacuum circuit breakers, Feed-through
insulators, Headers, High-power receptacles, Insulating discs,
Insulator rings and cylinders, Precipitator products, Power
switches, Traveling wave tubes, Windows, Power grid tubes, X-ray
tubes
Material Data. Sheet
General
Property
Units
99%Al2O3
95%Al2O3
ZrO2
Mechanical
Density
g/cm3
≥3.80
≥3.60
≥6.0
Water absorption
%
0
0
0
Hardness
HV
1700
1500
1300
Flexural strength
Mpa
≥338
≥320
≥1200
Compressive strength
Mpa
≥2240
≥2000
≥1990
Fracture toughness
Mpa m 1/2
4-5
3-4
6.5-8
Thermal
Max. service temperature (Non-loading)
℃
1600
1450
1000
CTE (20-800℃)
1×10 -6 /℃
6.2~8.0
5.0~8.0
8.0~9.5
Thermal shock
T(℃)
≥200
≥220
≥300
Thermal conductivity (25℃ )
W/m.k
29
24
3
Specific heat
1 x 10 3 J/(kg·K)
0.78
0.78
0.46
Electrical
Volume resistivity (25℃ )
ohm.cm
＞1 x 10 14
＞1 x 10 14
＞1 x 10 11
Insulation strength
KV/mm
18
18
17
Dielectric constant (1Mhz)
(E)
9.5
9.5
29
Other related metallized ceramic isolators
We also produce lots of different types of metallized ceramic
cylinders for electron tubes, vacuum interrupters, vacuum breakers.
Packaging proposal & Transportation methods
1. Vacuum packing with desiccant as an inner package;
2. Then, exported carton as an outer package.
3. Finally, it will be packed with a wooden case if needed.
4. We regularly use DHL, UPS, FedEx, and TNT to ship small parcels.
5. For large volume order, we could ship it by sea as per
customers' needs.
FAQs (Frequently Asked Questions)
Q1: Is it available to produce customized products?
A: We always support custom-made metallic coated ceramic insulators
as per different dimensions, designs, metallization, and platings.
Q2. When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price, please call us or tell
us in your email so that we will proceed with your inquiry as a
priority.
Q3. How long can I expect to get the sample?
A: After you pay the sample charge and send us confirmed files, the
samples will be ready for delivery in 4 weeks. The samples will be
sent to you via express and arrive in 3-5 workdays. You can use
your own express account or prepay us if you do not have an
account.
Q4. How long does the whole procedure being worked out?
A: After you place an order, the manufacturing time is about 25
working days.
Q5. How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per International AQL standard. A 100% cosmetic
inspection will be done.
