Industry Wear Resistant Machining Zirconium Oxide / Zirconia
Ceramic Components
Specification of zirconia ceramic components:
Material option: zirconia (ZrO2), alumina (Al2O3), silicon carbide(SiC), nitride silicon(Si3N4), Steatite |
Dimensional capability: Max. OD to be 100 mm, Max. length: 800mm |
Tolerance: OD best to be 0.005 mm, overall length to be 0.01 mm |
Roughness |
Better than Ra 0.1 |
Roundness |
Best to be 0.005 mm |
Surface treatment: Polished, Glazed, Metalized availability |
Cosmetic quality: Smooth surface without no contamination, deformation, and crack |
Main features of zirconia ceramic components
1. High density: over 6 g/cm3, which makes it the densest body of the ceramic products
2. High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth
surface finish
3. High toughness: over 1200 MPa, approx. 4 times in comparison with
95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide
ceramics with longer life cycle
5. Low thermal conductivity: less than 3 W/m.k at ambient
temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above
99% alumina
Description of zirconia ceramic components
Zirconia ceramic parts are made of zirconium oxide ceramics which
is a kind of strongest technical ceramic material with exceptional
strength, high toughness, and superb reliability. These outstanding
characteristics result in excellent resistance to wear and
corrosion.
We have been offering a selection of partially stabilized zirconia,
including Y-TZP( yttria-stabilized), MSZ ( magnesia stabilized ),
CSZ– (ceria stabilized). Each stabilized zirconia provides unique
and specific properties that meet the demands of extreme
applications found in many industries.
With our production capability through CNC, precision grinding
machines, we are able to provide many different level precision
zirconia ceramic parts to meet customers' high precision assembly
needs.
Application of zirconia ceramic components:
Various wear parts for wear applications, Valves & pump components,
Ceramic plain, balls and roller bearing, Tubes, fixtures, etc. for
High temperature, Thermal insulation components

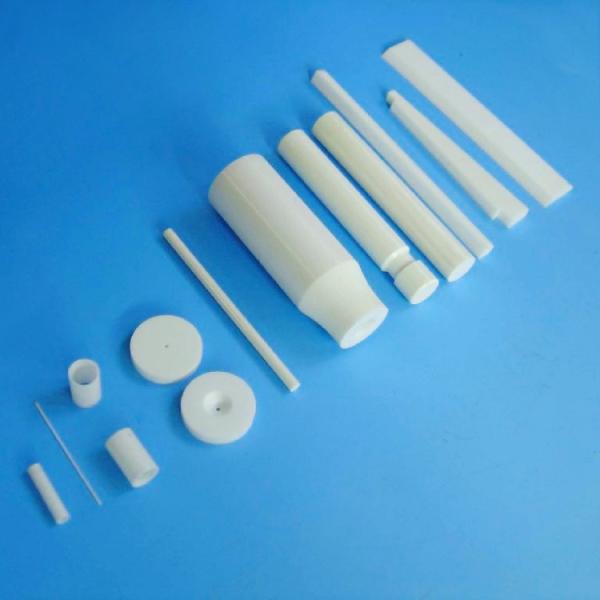

Gallery of zirconia ceramic components
We produce various of zirconia ceramic parts, including zirconia
ceramic seal ring, ceramic shaft, ceramic air nozzle, ceramic
bushings, ceramic rod, ceramic bar, ceramic plunger and so on.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |
Manufacturing flow chart of technical ceramic parts
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting and so on, it helps us to control
the quality very well, also it greatly benefits cost control.
Packaging proposal and transportation solutions
1. We will keep the ceramic parts inside the inner package to be
fixed without moving, then it will prevent them from collision each
other,
to avoid any cause any chippings during transportation.
2. In addition, the inside of the outer carton will be filled with
sufficient protective kinds of stuff.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful
R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
