High Corrosion Resistant Zirconia ZrO2 Ceramic Location Pin for
Positioning
Specification of ceramic pin:
1. Specification: Available outer from 1mm to 50mm, available
length from 10mm to 500mm
2. Tolerance: Diameter with tolerance 0.001mm, length with a
tolerance of 0.01mm
3. Material options: YSZ zirconia, TTZ zirconia, 99~99.7% alumina,
Silicon carbide (SiC)
4. Forming method: Dry pressed, Hot pressed, Ceramic injection molding and so on
Prime features of zirconia ceramic location pin:
1. Low thermal conductivity, less than 3 W/m.k at room temperature
2. Similar coefficient of thermal expansion as stainless steel
3. Excellent wear resistance, over 276 times than stainless steel
4. Exceptional fracture toughness reaches up to 8 Mpa m1/2
5. Higher density than most of technical ceramics, over than 6 g/cm3
6. High hardness, over than 1300 MPa for Vicker
7. Chemical inertness, aging resistance and not rust forever
8. Resistance to molten metals due to an extraordinary melting
point
9. Can withstand higher temperatures up to 2400°
Description of zirconia ceramic shaft:
With excellent mechanical strength and toughness, people call
zirconia as "ceramic steel" in the technical ceramic filed.
Furthermore, zirconia offers superb high hardness, excellent
thermal shock resistance, high-temperature properties, and low
thermal conductivity, due to these outstanding properties, zirconia
is considered as an ideal raw material of ceramic location pin.
As zirconia ceramic has a superb resistant crack, so it's easier to
do high precision processing for zirconia ceramic part, then get a
very high accuracy dimension.
The material of welding technology is usually used in any extreme
environment, should be chosen according to different application,
to meet its high wear resistance, high durability, high-efficiency
requirements.

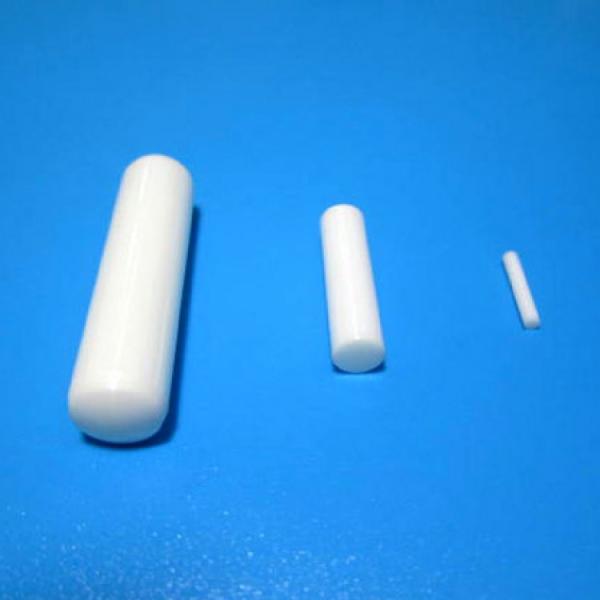

Gallery of zirconia ceramic location pin
We produce various zirconia ceramic pin in different materials with
a special design.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |
Manufacturing flow chart of ceramic pin
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting and so on, it helps us to control
the quality very well, also it greatly benefits cost control.
Packaging proposal and transportation solutions
1. We will keep the ceramic parts inside the inner package to be
fixed without moving, then it will prevent them from collision each
other,
to avoid any cause any chippings during transportation.
2. In addition, the inside of the outer carton will be filled with
sufficient protective kinds of stuff.
