Dry Pressed Wearable Thermal Insulation 3Y - TZP Zirconia ZrO2
Ceramic Fixture
Prime features of zirconia ceramic fixture:
1. Can withstand higher temperatures up to 2400°
2. Higher density than most of technical ceramics, over than 6 g/cm3
3. High hardness, over than 1300 MPa for Vicker
4. Low thermal conductivity, less than 3 W/m.k at room temperature
5. Similar coefficient of thermal expansion as stainless steel
6. Excellent wear resistance, over 276 times than stainless steel
7. Exceptional fracture toughness reaches up to 8 Mpa m1/2
8. Chemical inertness, aging resistance and not rust forever
9. Resistance to molten metals due to an extraordinary melting
point
Specification of ceramic fixture:
1. Material options: YSZ zirconia, TTZ zirconia, 99~99.7% alumina,
Silicon carbide (SiC)
2. Forming method: Dry pressed, Hot pressed, Ceramic injection
molding and so on
3. Type of ceramic fixture: Ceramic bracket, Ceramic holder,
Ceramic support, Ceramic base
4. Specification: Available outer from 1mm to 50mm, available
length from 10mm to 500mm
5. Tolerance: Diameter with tolerance 0.001mm, length with a
tolerance of 0.01mm
Description of zirconia ceramic fixture:
Zirconium oxide (Zirconia) offers low thermal conductivity, superb
wear resistance, excellent fracture toughness, outstanding low
friction coefficient, exceptional resistant strong acid & alkali,
and great high-temperature resistance, strong hardness, electrical
insulation, these make zirconia ceramic as a very important
technical raw material of structural parts used in various
machinery, electrical, electronic, engineering fields.
With high fracture toughness to resistant crack, it's an ideal
machinable advanced ceramics. Our facility is capable of machining
a variety of complicated ceramic parts with a very high accuracy
dimension through fine grinding, lapping, CNC machining, laser
cutting and so on.
These zirconia structural ceramics are widely used to wear ceramic
fixtures, the ceramic plunger in fluid metering, ceramic valve seat
in the pump, ceramic shaft/bearing, ceramic wire guides in the
textile machinery industry.

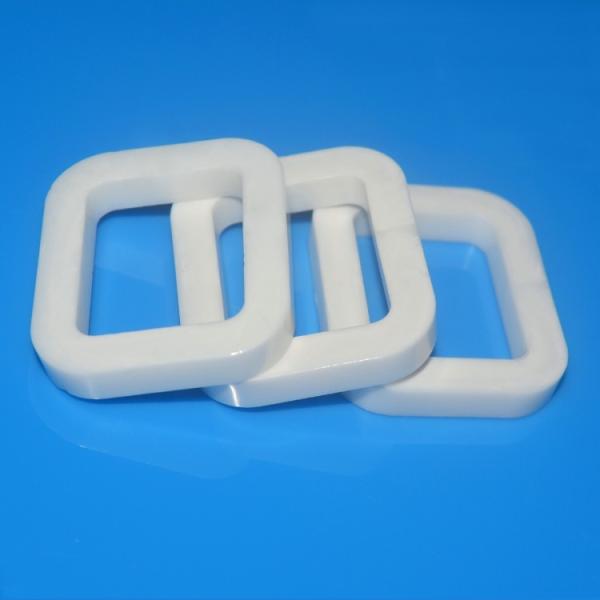

Gallery of zirconia ceramic fixture
We produce various zirconia ceramic fixtures in different materials
with a special design.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |
Manufacturing flow chart of technical ceramic parts
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting and so on, it helps us to control
the quality very well, also it greatly benefits cost control.
Packaging proposal and transportation solutions
1. We will keep the ceramic parts inside the inner package to be
fixed without moving, then it will prevent them from collision each
other,
to avoid any cause any chippings during transportation.
2. In addition, the inside of the outer carton will be filled with
sufficient protective kinds of stuff.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
