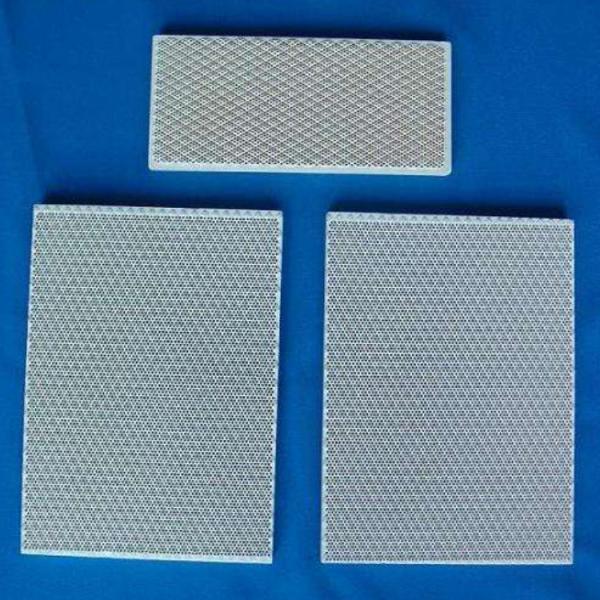

Porous Infrared Honeycomb Ceramic Cordierite Plate for Gas Burner

Description of honeycomb ceramic cordierite plate:

Honeycomb ceramic cordierite plates are widely used in energy-saving technologies for industrial thermal equipment. This kind of technical ceramic plate has been proven to making industrial thermal equipment more efficient, reducing energy consumption, increasing production and so on. It is an important and effective means to solve energy and environmental problems. The cross-section holes of the honeycomb ceramic plate mainly have two kinds of hole structures of a square shape and a regular hexagon shape, and the holes are straight channel structures parallel to each other. This structure greatly reduces the resistance of the pores flowing through and greatly improves the single-pore volume heat exchange efficiency of the regenerator.

If the ceramic plate coated with a black catalyst, the honeycomb ceramics can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion.

Specification of honeycomb ceramic cordierite plate:

1. Material: cordierite, alumina optional 2. Color: white, black, brown, blue optional available

3. Dimensions: Individual custom size, it can cut to the size per customers' needs.

4. Shape: Rectangle, square, round or customized shape available

5. Surface pattern: diamond, prismatic and quincunx available

6. Working temperature: max. to 1280℃ 7. Aperture ratio: 61%

8. CO release: less than 0.006R 9. NOx release: less than 5ppm

Stock items checklist with standard dimensions:

Jinghui Industry Ltd is a trusted and professional manufacturer of technical ceramic components, we dedicated to developing, manufacturing, sales, and service of a variety of industrial ceramic parts over 15 years since its establishment in 2005.

The facility focus on producing metalized ceramics, pepper/spice ceramic mechanisms, zirconia ceramic parts, thermostat ceramics, ceramic seals and other plenty of electronic and industrial ceramic parts in a selection of technical ceramic materials, such as alumina, zirconia，Silicon carbide, Silicon nitride, and steatite and so on. They are mainly used in electronic appliances, equipment, and mechanical engineering, automotive industry, medical technology, new energy and environmental protection, aerospace and so on.

The enterprise acquired ISO9001: 2008 in 2009, all of us in Jinghui persist the policy “No quality, No development", and it helped us succeed in exporting to European, North America, Southeast Asia and South America more than 50 countries through all Jinghui people's effort, innovation, and initiative.

Many amazing solutions were to be supplied to our customers to reach their ’toughest technical challenges. Our goal is to find a better and optimal solution for all our customers from technology, quality, cost control, and after-sales service, we are looking forward to cooperating with you to create a totally new business in your field.
