Mirror Surface Isostatic Pressing Yttria Stabilized 3Y-Zirconia
Ceramic Rod
Specification of ceramic rods:
1. Material options: Zirconium oxide ceramics, 95~99.5% alumina,
Silicon carbide (SiC), Silicon carbide
2. Forming method: Cold ISO pressing, Dry pressed, Ceramic injection molding with dense ceramic body
3. Specification: Available outer from 0.5mm to 50mm, available
length from 3mm to 2000mm
4. Tolerance A: Diameter below 12.5mm, tolerance ± 3% or ± 0.076 mm, whichever is greater.
Straightness: camber / length < 0.003
5. Tolerance B: Diameter above 12.5mm, tolerance ± 5% or ± 0.76 mm,
whichever is greater. Straightness: ≤ 0.006″/1.000″ cumulative
6. Surface finish: the working surface to be diamond polished up to
Ra0.1, or better
Prime features of zirconia ceramic rods:
1. High hardness, over than 1300 MPa for Vicker
2. Can withstand higher temperatures up to 2400°
3. Exceptional fracture toughness reaches up to 8 Mpa m1/2
4. Higher density than most of technical ceramics, over than 6 g/cm3
5. Low thermal conductivity, less than 3 W/m.k at room temperature
6. Chemical inertness, not interact with almost all strong acid and
alkali
7. Resistance to molten metals due to an extraordinary melting
point
8. Good Wear resistance, over 276 times than stainless steel
Description of zirconia ceramic rods:
Our facility manufactures a wide range of zirconia ceramic rod
shafts by cold ISO pressing, dry pressing or ceramic injection
molding. All these zirconia ceramic rods are with a dense ceramic
body. In order to reduce the friction further, the cylindrical
surface will be polished to be a mirror effect.
We have been dealing with various standard and customized zirconia
ceramic rods, including the dimensions, different grades of
zirconia, different shapes, different surface treatments and so on.
Application of zirconia ceramic rods:
Zirconia ceramic rod/bar is used in the shaft, plunger, automobile
Industrial, sealing structure, oil drilling equipment, Insulation
parts in electrical equipment, electronic engineering, industrial
machinery, and ceramic hair clipper spare parts, with high density,
bending strength and breaking tenacity.
Datasheet of Technical ceramics
| Property | Units | Material |
| 99.5% alumina | 99%alumina | 95% alumina | ZrO2
(Y-TZP) | ZrO2 (TTZ) |
| Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥5.95 | ≥5.72 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 |
| Hardness | HV | 1700 | 1700 | 1500 | 1300 | 900 |
| Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥1200 |
| Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | 1750 |
| Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 11 |
Max. service
temperature | ℃ | 1675 | 1600 | 1450 | 1000 | |
| CTE | 1×10 -6 /℃ | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 10.2 |
| Thermal shock | T(℃) | ≥250 | ≥200 | ≥220 | ≥300 | 350 |
| Thermal conductivity(25℃) | W/m.k | 30 | 29 | 24 | 3 | 3 |
| Volume resistivity | ohm.cm | | | | | |
| 25℃ | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 14 | ＞1 x 10 11 | ＞1 x 10 11 |
| 300℃ | 1 x 10 12 | 8 x 10 11 | 10 12 -10 13 | 1 x 10 10 | 1 x 10 10 |
| 500℃ | 5 x 10 10 | 2 x 10 9 | 1 x 10 9 | 1 x 10 6 | 1 x 10 6 |
| Insulation strength | KV/mm | 19 | 18 | 18 | 17 | 20 |
| Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 | 28 |

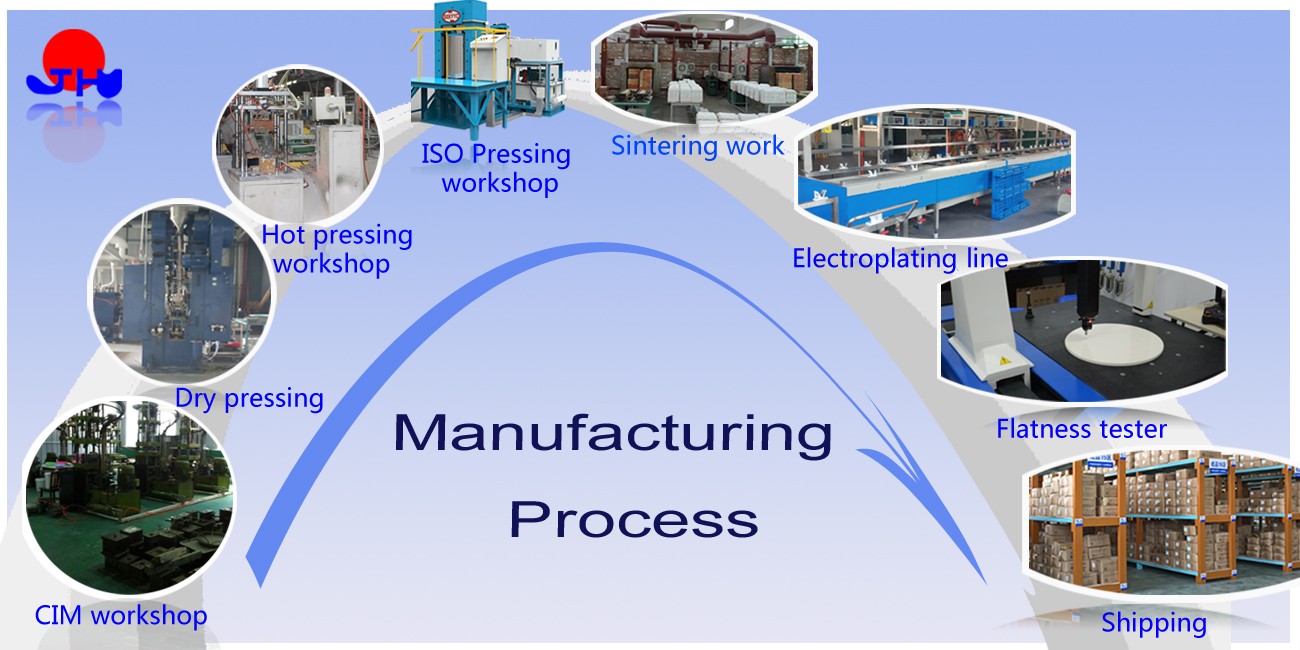

Manufacturing flow chart of ceramic rods
We have in-housing comprehensive manufacturing types of equipment,
including forming, sintering, CNC machining,
precision grinding, laser cutting and so on, it helps us to control
the quality very well, also it greatly benefits cost control.
Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D,
mass production capability
★ In-house comprehensive manufacturing types of equipment ★
Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders
as the first priority
FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If
you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed
with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials,
dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling
inspection per international AQL standard. A 100% cosmetic
inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates,
ceramic sheets, textile ceramics besides metalized ceramics.
